Plant List

Engineering Plant

• Milling

  Haas VM3 5 axis CNC machining centre 1000 x 600 CAD_CAM link

  Haas VM2 4 axis CNC machining centre 760 x 500 CAD_CAM link

  Haas Super MiniMill2 CNC machining centre CAD_CAM link

  Haas Super MiniMill CNC machining centre CAD_CAM link

  Haas Super MiniMill CNC machining centre CAD_CAM link

  XYZ 2000 Turret Mill with DRO XYZ

  XYZ 3000 Turret Mill with DRO XYZ

  KVR 3000 5 HP Turret Mill fitted with Acu-Rite DRO

• Turning

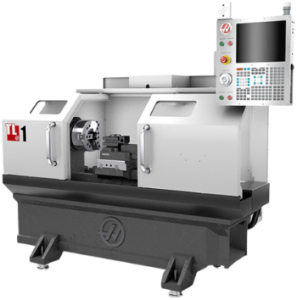

  Haas TR1 CNC Turning centre

  Tryax Cnc Turning Centre

  Colchester Triumph 2000 190mm Centre height x 1270mm Bed complete with Hepworth Hydraulic Copy Turning Unit

  Colchester Triumph 2000 Short Bed Gap Lathe with Hepworth Hydraulic Copy Turning.

• EDM Wire / Spark Erosion

  Fine Sodick A325 Super precision 4 axis Fully submerged, Auto wire feed, CNC Wire erosion machine, max. travel X 400mm,Y 300mm ,Z 250mm

  Fine Sodick SLC400G 4 axis Fully submerged, Auto wire feed, CNC Wire erosion machine, Linear motor Drive on X,Y,U,V axis, Touch screen, High speed threading

  Fine Sodick AM35 4 Axis Full CNC Spark Eroder capable of superfine finishes of 1uR max.,

  4 Station tool changer , threads, helix’s, reverse tapers, etc.

  Fine Sodick AD35L 4 Axis Full CNC Spark Eroder ,4 Station tool changer capable of superfine finishes of 1uR max.

  threads, helix’s, reverse tapers, etc.

  Fine Sodick K1C Small hole EDM drilling machine 0.3mm to 3mm Dia.

• Grinding

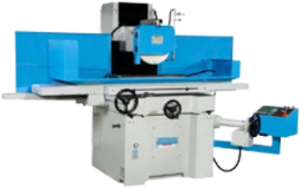

  Euro Spark CNC Surface Grinder,

  Jones & Shipman 540 Surface Grinder complete with Opti Dress Wheel Forming Equipment

  Jones & Shipman 540P fitted with Diaform 10-1 Wheel Forming Equipment

  Jones & Shipman Cylindrical Universal Toolroom Grinder 254 x 609 Exterior 203 x 254 Interior Equipped with Wheel Forming Facilities.

• Miscellaneous

  Shot – Blasting Equipment

  Work holding between machines using the latest equipment from System 3R

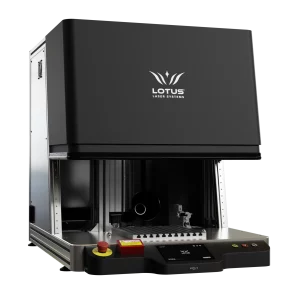

  Electrox Laser Engraving system with Rotary axis

Injection Moulding Plant

• Moulding, Welding, Assembly & Testing

  Arburg 570C ( 200 Ton ) Golden Edition with Selogica

  Direct Touch Screen control system.

  Arburg 570C (200 Ton) Golden Edition with Selogica

  Direct Touch Screen control system.

  Arburg 570C (200 Ton) Golden Edition with Selogica

  Direct Touch Screen control system.

  Arburg 570C (200 Ton) Golden Edition with Selogica

  Direct Touch Screen control system.

  Arburg 320 C 500 – 170 ( 50 Ton ) Golden Edition with Selogica

  Direct Touch Screen control system. Sited in White room.

  Arburg 320 C 500 – 170 ( 50 Ton ) Golden Edition with Selogica

  Direct Touch Screen control system. Sited in White room.

  Arburg 320 C500 – 170 ( 50 Ton ) Golden Edition with Selogica

  Direct Touch Screen control system.

  Arburg 320 C 500 – 170 ( 50 Ton ) Golden Edition with Selogica

  Direct Touch Screen control system.

  Arburg 320 C500 – 170 ( 50 Ton ) Golden Edition with Selogica

  Direct Touch Screen control system.

  Arburg 320 C 500 – 170 ( 50 Ton ) Golden Edition with Selogica

  Direct Touch Screen control system.

  Arburg 270U Allrounder  sited in White room.

• Other

  Robotic part pickers, Hopper drier’s,Hopper loaders, Conveyors and mould heaters.

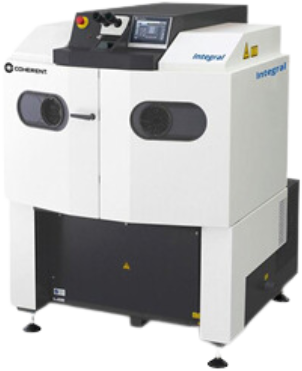

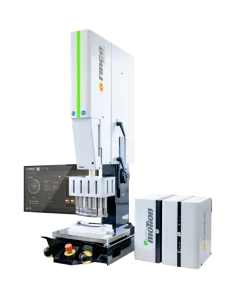

  Rinco Ultrasonic plastic welding machines at 20 KHz ,35 KHz. and 70 KHz

  Electrox Laser marking System,

  Hot Foil Printing Equipment,

  Vacuum, Pressure testing equipment,

  General product testing to suit specification.

  Sub contract Ultrasonic Plastic welding available
